S Series Oil Mist Collector

Ultra-Compact Oil Mist Extraction System (180 m³/hr – 950 m³/hr)

The Filtermist S Series Oil Mist Collector is a compact, high-performance extraction solution designed to efficiently remove oil mist, coolant mist, and airborne contaminants generated during machining operations. Trusted by leading manufacturers worldwide since 1969, the S Series combines powerful filtration with a space-saving design, making it ideal for CNC machines, lathes, milling machines, grinding equipment, and other industrial applications. Operating with airflow capacities ranging from 180 m³/hr to 950 m³/hr, the S Series ensures cleaner air, improved workplace safety, and enhanced machine efficiency while maintaining low noise levels and minimal energy consumption.

Key Features

Ultra-Compact Design for easy installation in limited spaces.
High-Efficiency Oil Mist Removal for cleaner manufacturing environments.
Airflow Capacity: 180 m³/hr to 950 m³/hr.
Low Noise Operation ranging from 62–67 dBA.
Energy-Efficient Motors with multiple voltage options.
Lightweight Construction for simple installation and maintenance.
Trusted Worldwide by manufacturers since 1969.
Suitable for CNC Machines, Lathes, Grinders, Milling & Turning Centres.

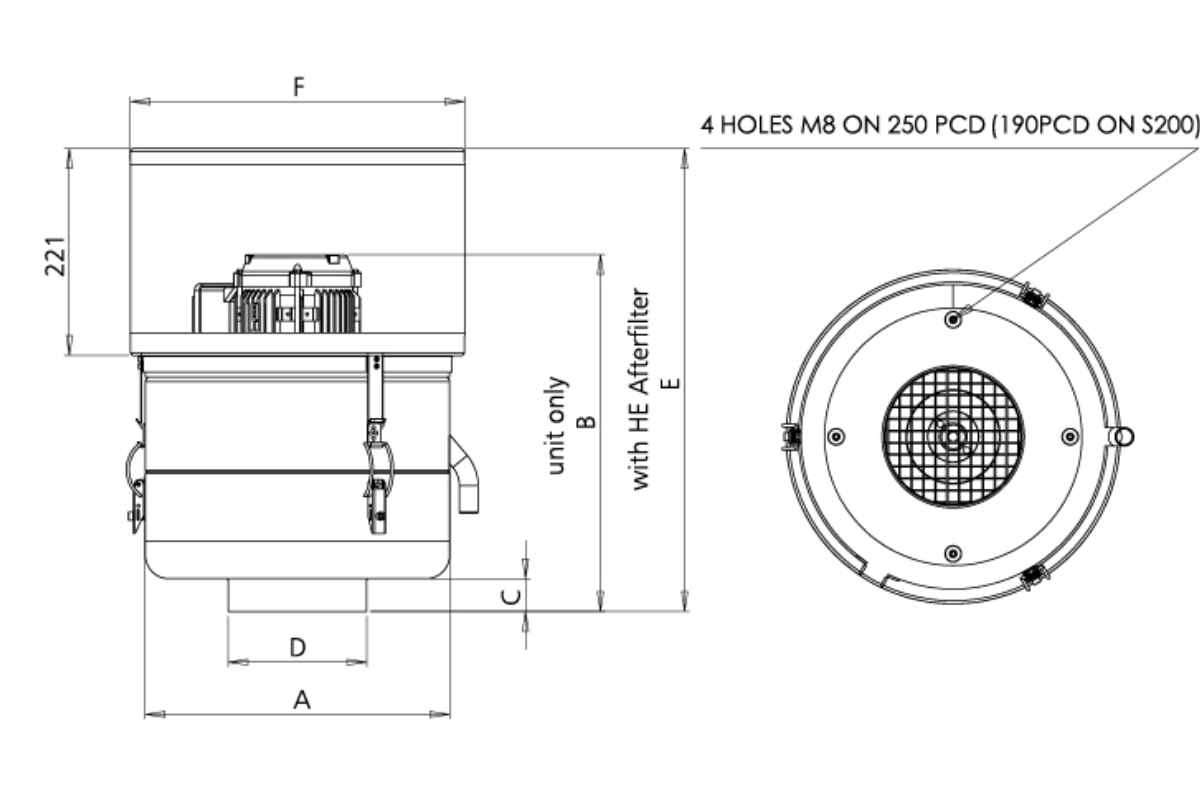

Model	Airflow (m³/hr)	Motor 50Hz ¹	Motor 60Hz ¹	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Weight ² (kg)	Noise ³ (dBA)
S200	180 @ 50Hz 215 @ 60Hz	0.18kW 200V, 220V, 380V, 400V	0.18kW 200V, 220V, 230V, 440V, 460V, 480V	260	302	30	73	423.50	324	8	62
S400	425 @ 50Hz 500 @ 60Hz	0.55kW 200V, 220V, 380V, 400V	0.55kW 200V, 220V, 230V, 440V, 460V, 480V	325	374	35	148	494.50	357	14	65
S800	800 @ 50Hz 950 @ 60Hz	0.55kW 200V, 220V, 380V, 400V	0.55kW 200V, 220V, 230V, 440V, 460V, 480V	325	427	35	148	543.50	357	15	67
