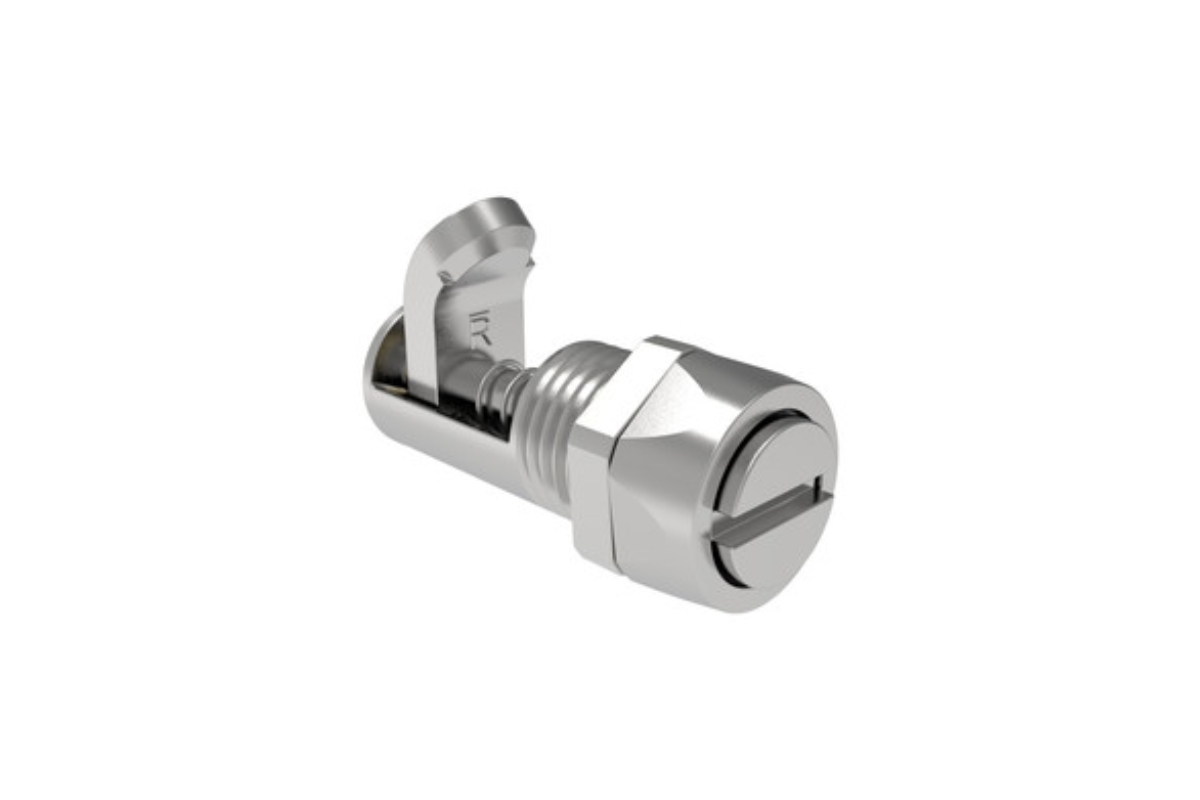

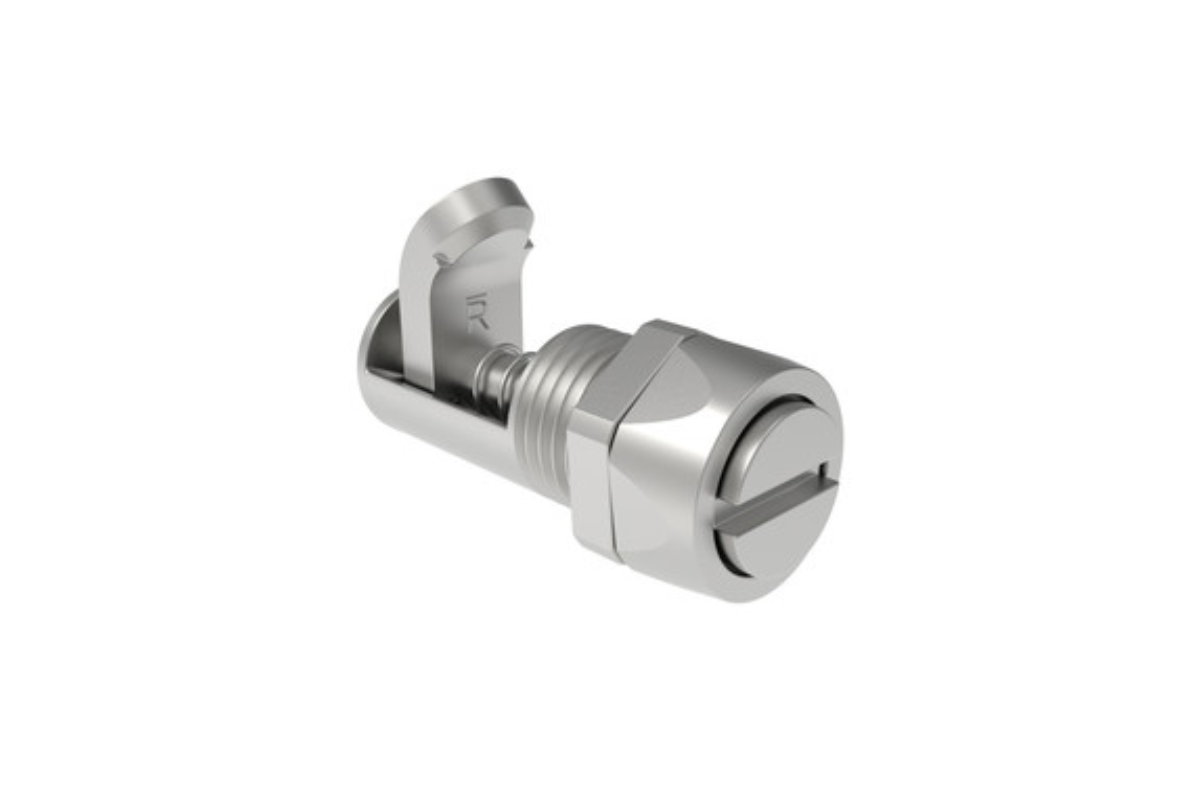

Secure Closure: Provides tight, vibration-resistant door closure with consistent 6.4 mm (0.25") pull-up
Smooth Operation: Cam aligns behind the frame and draws upward without scraping.
Reliable Protection: Ideal for gasketed applications, helping seal out water and dust while reducing noise and rattles.
Safety: Over-center latching prevents accidental opening.
| Ingress Protection (IP) Rating | IP 65 |
|---|---|
| Fire (EN45545-3) Rating | E10 |
| Material | Zinc Alloy |
| Finish | Chrome Plated |
| Color / Appearance | Bright |
| Access Restriction | Key Locking |
| Grip Type | Adjustable |
| Mounting Style | Single Hole Mount |
| Head Style | Southco® Tubular Key |
| Series | Standard |
| Min. Outer Panel Thickness | 0.00 mm |
| Max. Outer Panel Thickness | 18.00 mm |
| Grip - Minimum | 11.40 mm |
| Grip - Maximum | 27.20 mm |
| Grip - Minimum (Cam Reversed) | 66.30 mm |
| Grip - Maximum (Cam Reversed) | 76.20 mm |
| Cam Attached | Yes |
| Rotation | Type A - Turn Clockwise to Latch |
| Compliance Specification |
UL FTTA2 / FTTA8 Type 1
UL FTTA2 / FTTA8 Type 12
UL FTTA2 / FTTA8 Type 12K
UL FTTA2 / FTTA8 Type 13
UL FTTA2 / FTTA8 Type 2
UL FTTA2 / FTTA8 Type 5
|
| Class | E3 - VISE ACTION® Compression Latches |
| Size | 19.1 mm |
